Phrozen Sonic Mighty Revo 10.1" LCD 3D Printer

$892.49 $1,049.99
Shipping calculated at checkout.

  • Ultra-high 14K resolutions with smart sensors.
  • 24/7 mobile integrated systems.
  • High-quality, all-metal frame.
  • Intuitive, user-friendly interface.
  • Versatile, suitable for medium and small prints.

Adapter
Shipping & Tariff
Return & Warranty

Specifications

  • Printing Volume
    L22.3 x W12.6 x H23.5 cm
  • Printing Speed
    Avg. 450 layers/hr
  • XY Resolution
    16.8 x 24.8 µm
  • Layer Thickness
    0.01-0.30 mm
  • Light Source
    Linear Projection LED Module
  • LCD Specification
    10.1" 14K Mono LCD (13320 x 5120 pixels)
  • Operation
    5" Touch Panel
  • Slicer Software
    -
  • Compatible File Format
    .CTB/.PRZ
  • Connectivity
    USB | Wi-Fi
  • Printer Size
    L35.3 x W34.5 x H51.7 cm
  • Printer Weight
    18 kg
  • Power Reruirement
    AC100-240V ; 50/60HZ
  • System Power
    Max 240W
  • Rail
    Dual Linear Rails
  • Screw
    Ball Screw
  • Release Film
    nFEP Film

Resource

Have an Extra Eye on Your Printer

Experience the new Revo detection system thanks
to our patented 3-point piezoelectric sensor.
Integrated seamlessly with the Phrozen GO App, it's
connected 24/7 to your phone for timely
monitoring.

Smart Failure Detection

Provides ultra-high printing resolution, ensuring the highest quality in fine prints suitable for personal and professional use.

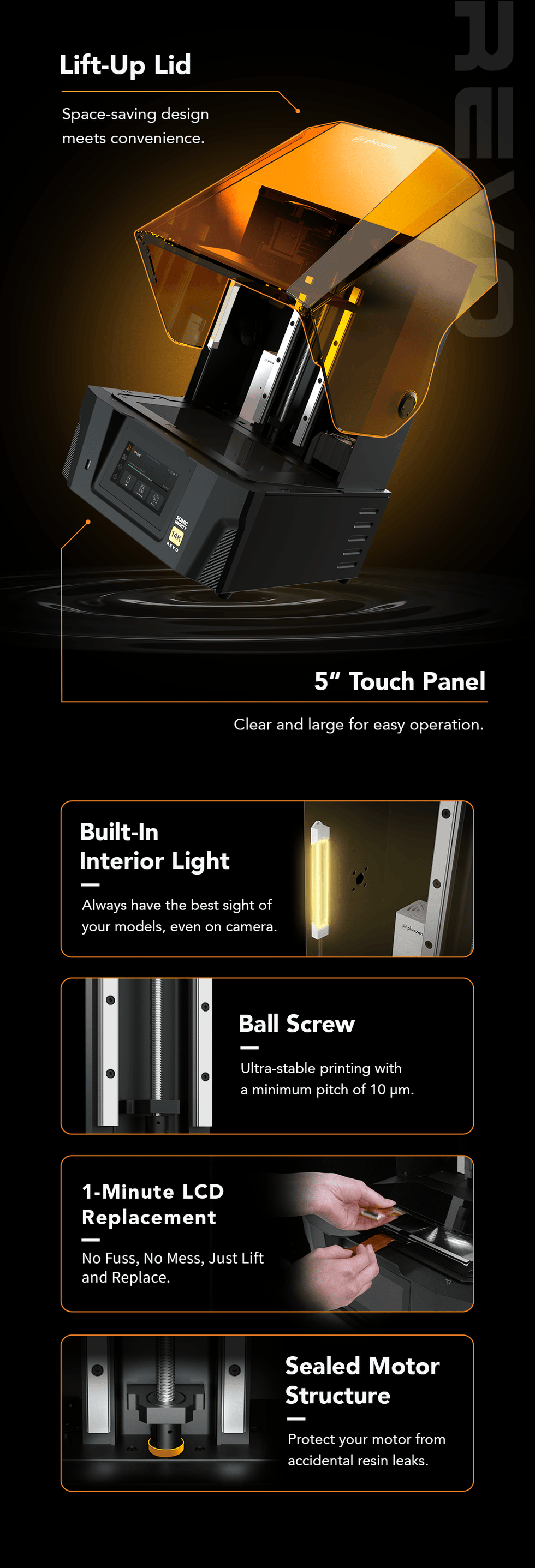

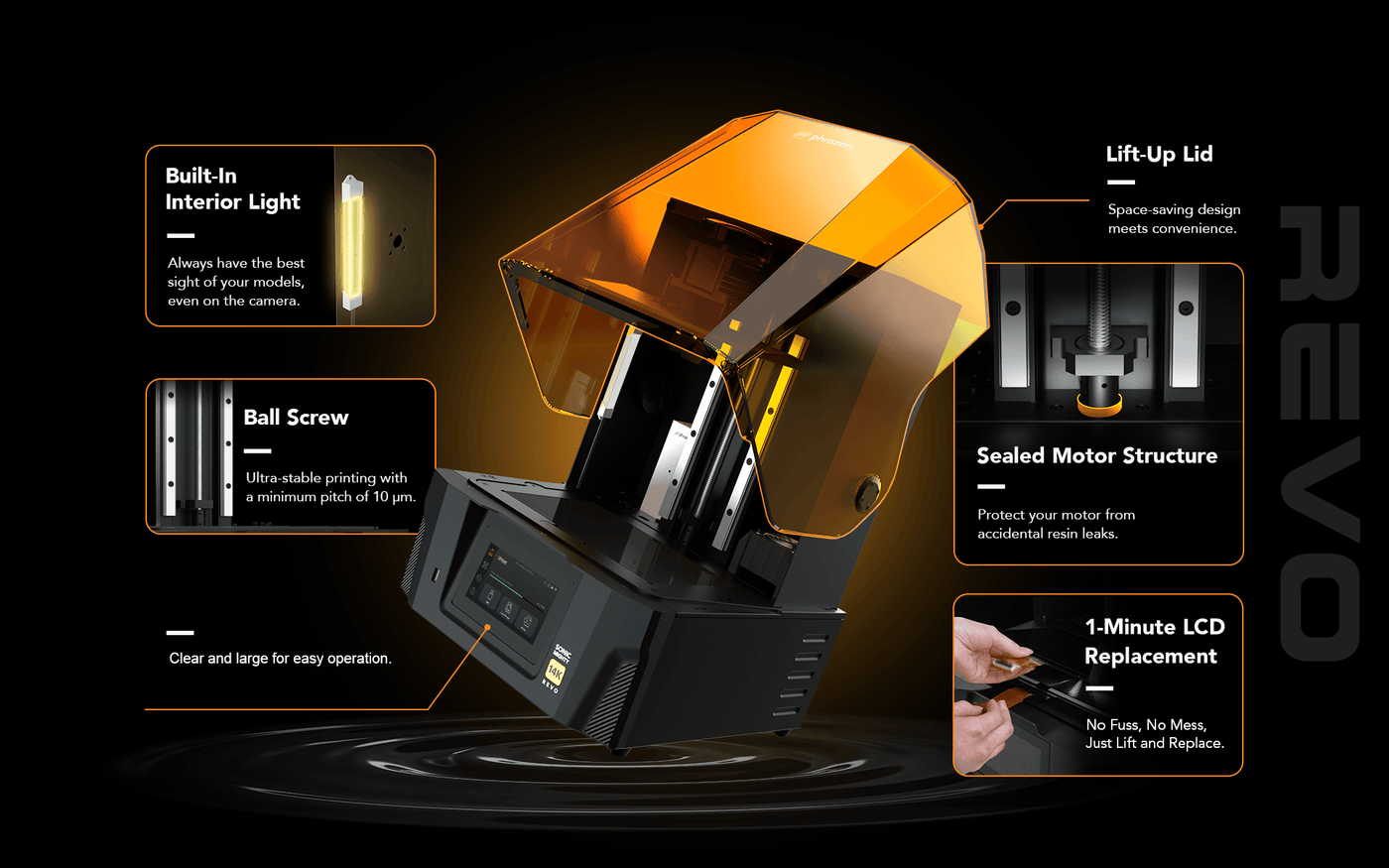

1 Minute LCD Replacement

LCD replacement can be intimidating with lots of screws and cables to handle, but not on the Revo.
Rest assured that when it’s time to ever have your screen replaced, everything is quick and hassle-free.

Which is the Best for You?

A table comparing the facets of 4 products
Facet
Phrozen Sonic Mighty 4K 9.3" LCD 3D Printer
View details
Phrozen Sonic Mighty 8K 10.1" LCD 3D Printer
View details
Phrozen Sonic Mighty 12K 10.1" LCD 3D Printer
View details
Phrozen Sonic Mighty Revo 10.1" LCD 3D Printer
View details
Price
Price
From $446.24 $524.99
From $446.24 $524.99
$580.54 $682.99
$892.49 $1,049.99
Printing Volume
Printing Volume
L20 x W12.5 x H22 cm
L22.3xW12.6xH23.5 cm
L21.8 x W12.3 x H23.5 cm
L22.3 x W12.6 x H23.5 cm
Printing Speed
Printing Speed
Max 80 mm/hr
Max 70 mm/hr Avg. 400 layers/hr
Avg. 400 layers/hr
Avg. 450 layers/hr
XY Resolution
XY Resolution
52 µm
16.8 x 24.8 µm
19 x 24 µm
16.8 x 24.8 µm
Layer Thickness
Layer Thickness
0.01-0.30mm
0.01-0.30 mm
0.01-0.30 mm
0.01-0.30 mm
Light Source
Light Source
405nm ParaLED Matrix 2.0
Linear Projection LED Module
Linear Projection LED Module
Linear Projection LED Module
LCD Specification
LCD Specification
-
10.1" 8K Mono LCD
10.1" 12K Mono LCD (11520 x 5120 pixels)
10.1" 14K Mono LCD (13320 x 5120 pixels)
Printer Size
Printer Size
L29.3 x W29.3 x H43.2 cm
L35.3xW34.5xH51.7 cm
L33.7 x W33.7 x H51.6 cm
L35.3 x W34.5 x H51.7 cm
Printer Weight
Printer Weight
8 kg
18 kg
14.3 kg
18 kg
Rail
Rail
-
Dual Linear Rails
Dual Linear Rails
Dual Linear Rails
Screw
Screw
-
Ball Screw
Lead Screw
Ball Screw
