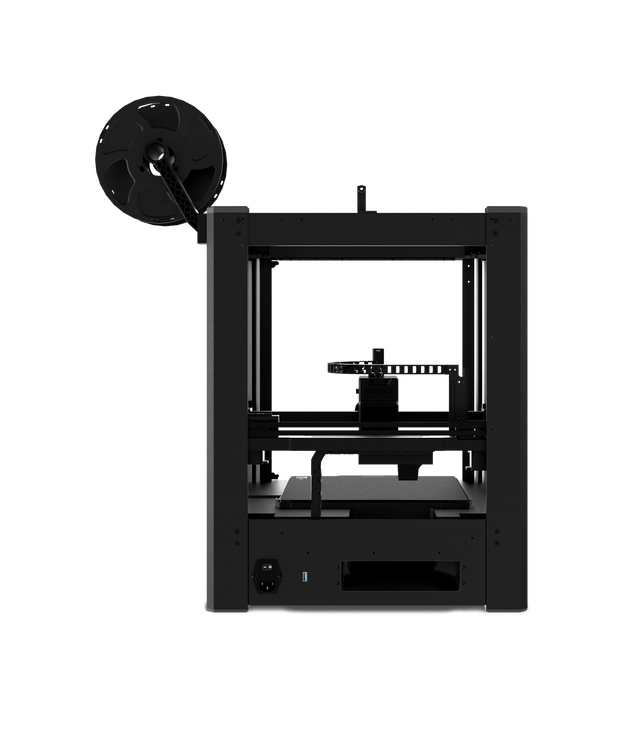

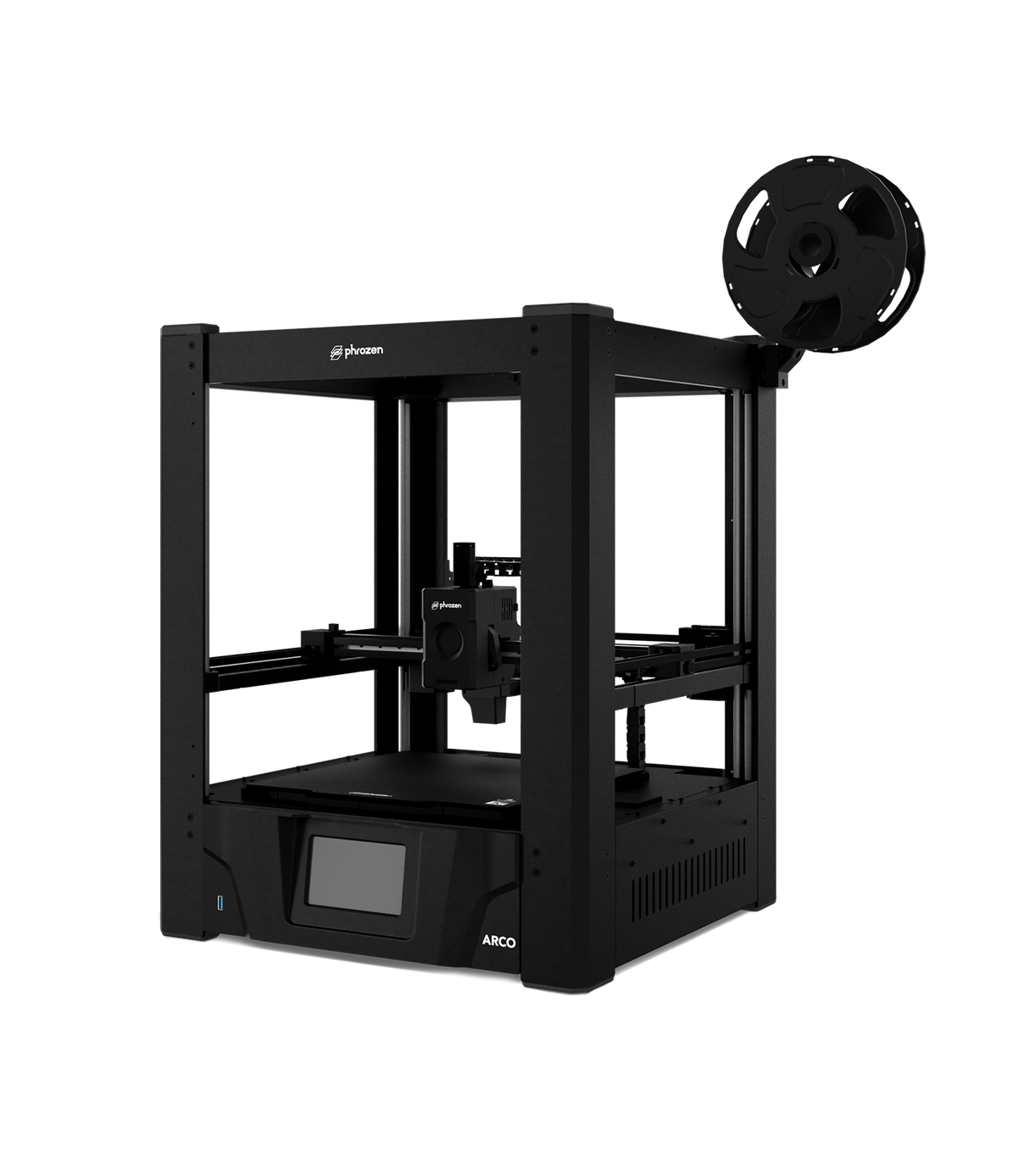

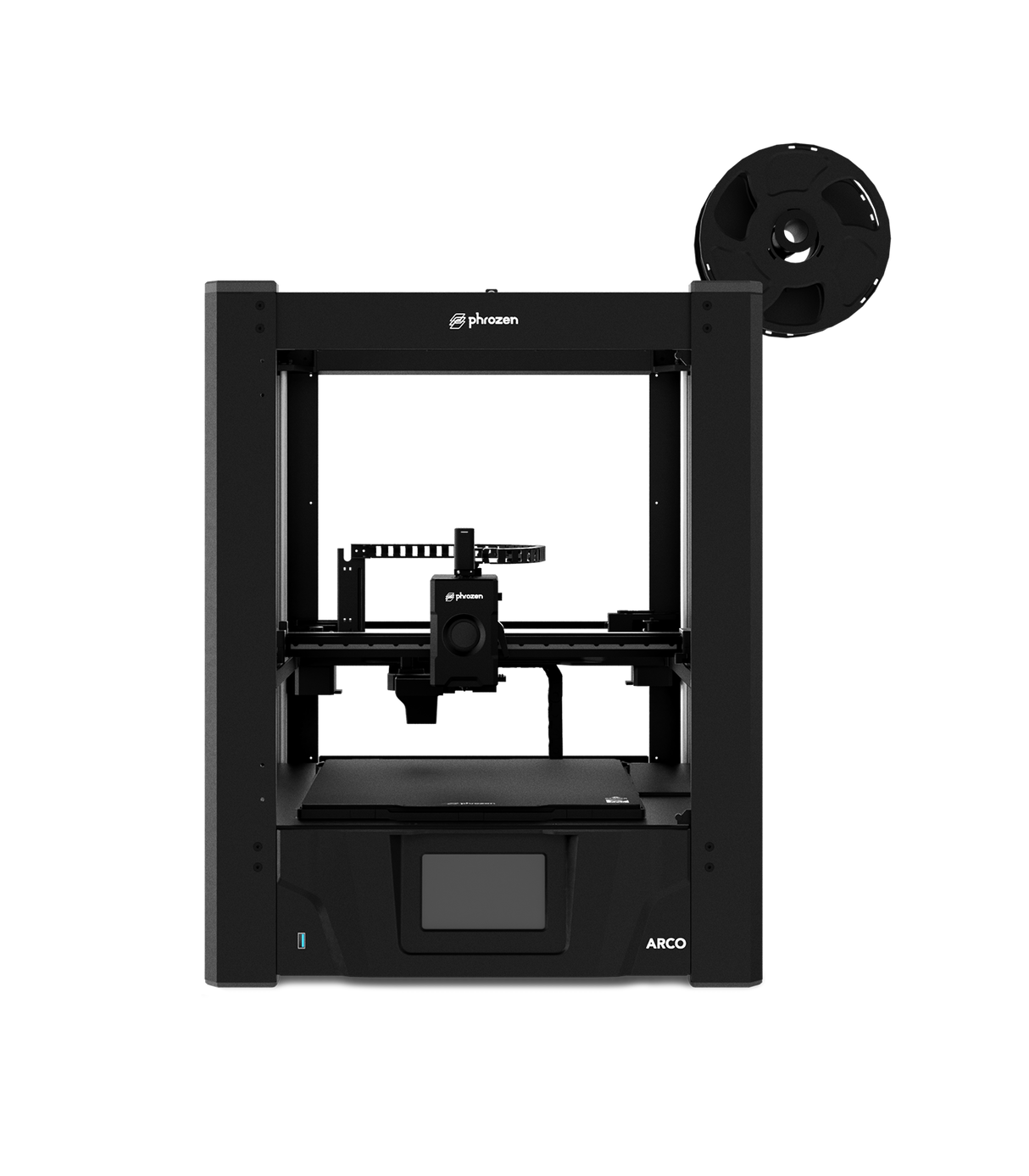

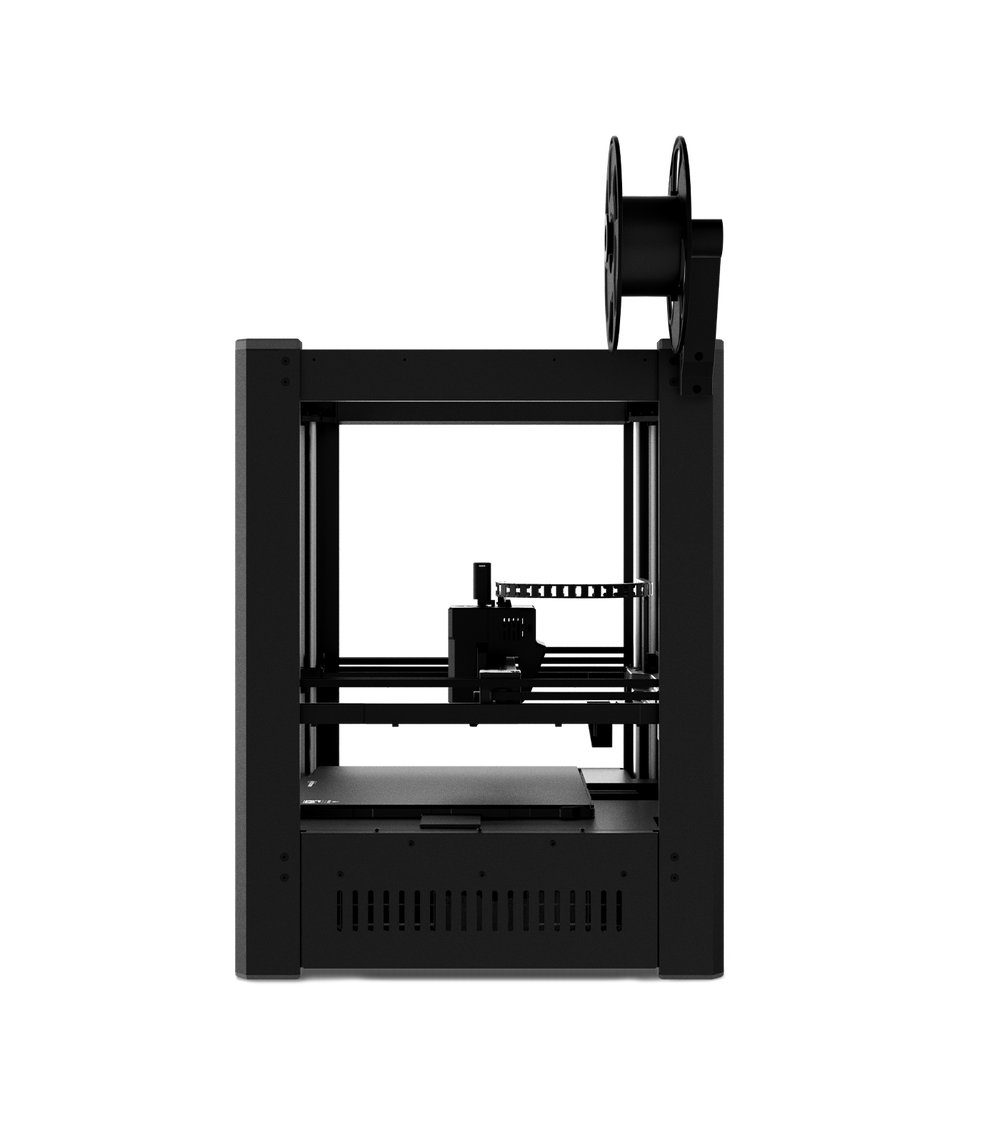

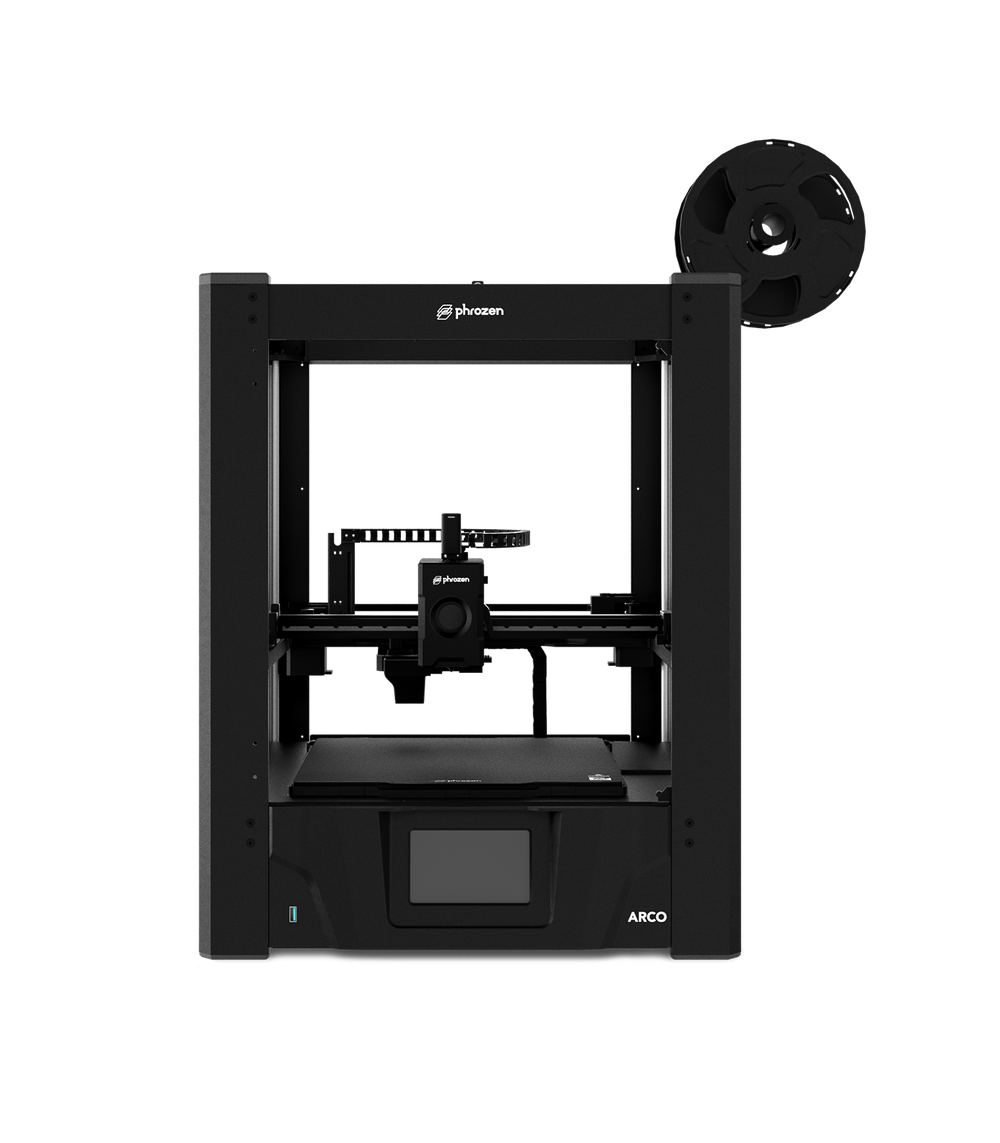

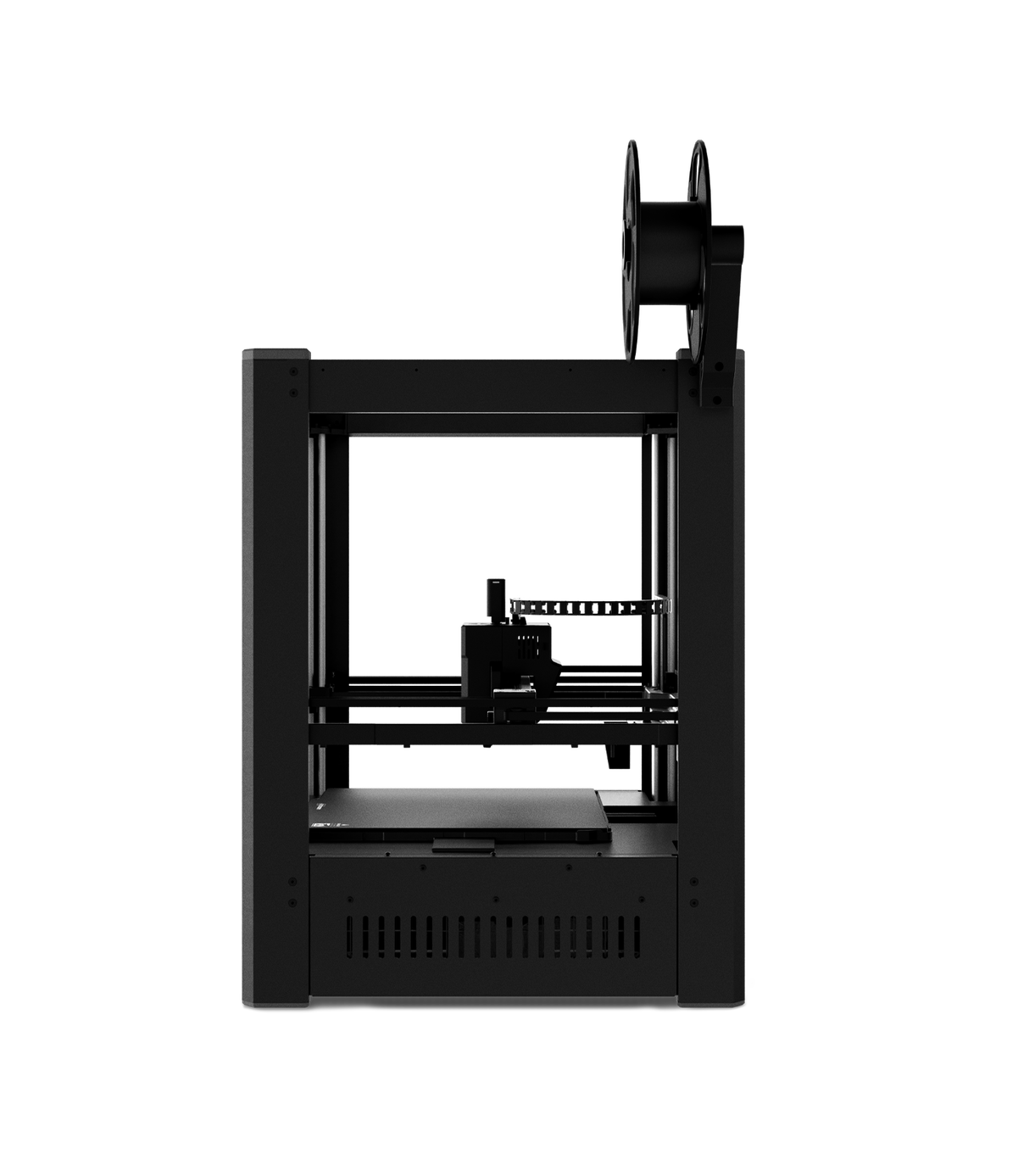

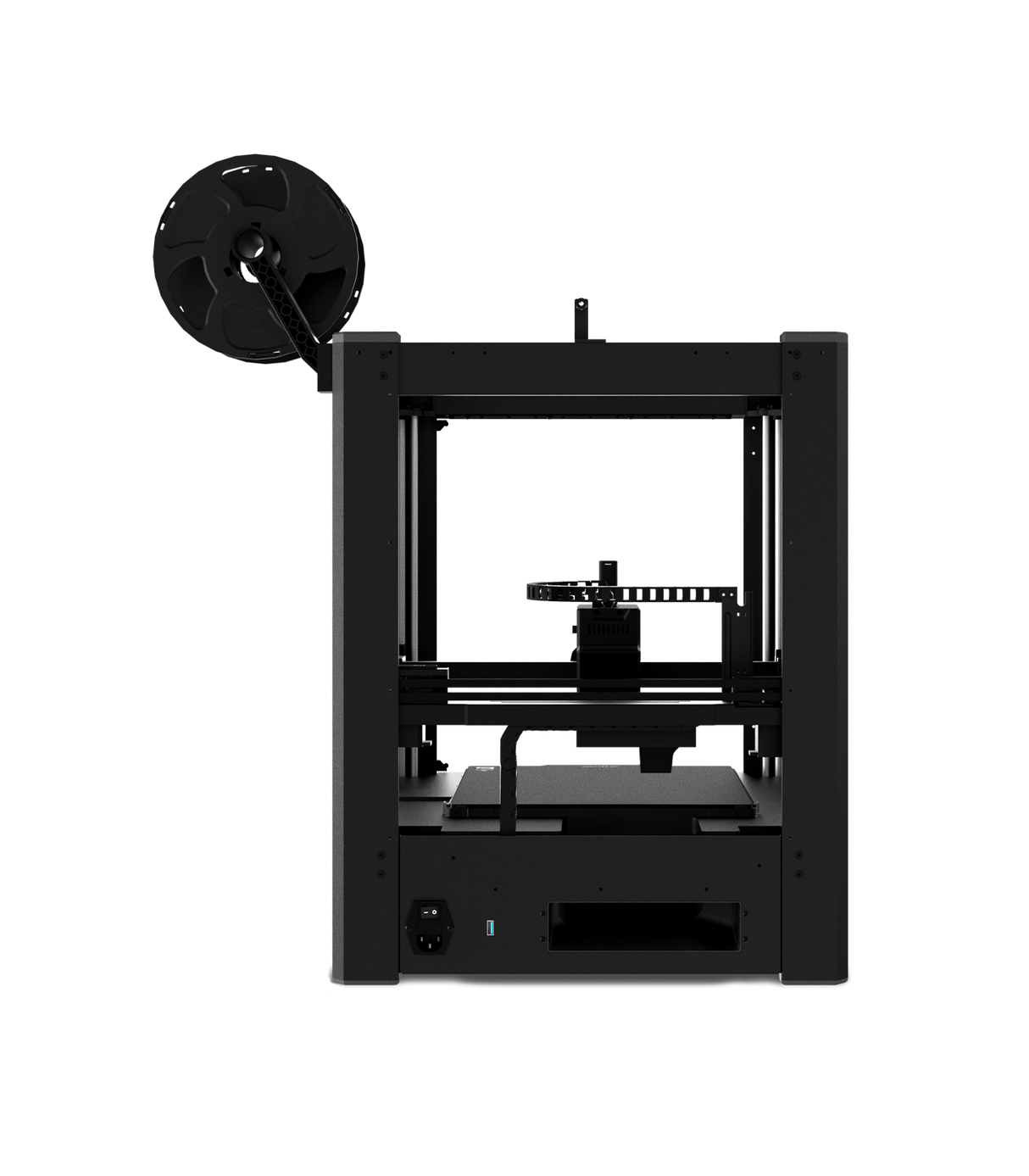

Phrozen Arco FDM 3D Printer
Phrozen Arco FDM 3D Printer
Phrozen Arco FDM 3D Printer
Phrozen Arco FDM 3D Printer

Phrozen Arco FDM 3D Printer

Sale price$892.99
Re-stocking soon

Estimated lead time:late September
Estimated lead time for items in restock are calculated from the re-stock time:

Adapter:US
Quantity:

Larger and More Creations at Once

Dive into boundless creativity with Phrozen Arco's expansive 300*300*300 mm³ printing volume. Simultaneously print multiple sets or larger models at once. Unleash your imagination with the first large-volume multicolor FDM 3D printer.

It’s Big, It’s Colorful

Driven by the Chroma Kit Multicolor Printing System, Phrozen Arco brings bright, vivid color to your creations with a breeze.

12x Faster Acceleration

Arco’s 600 mm/s printing speed and substantial acceleration of 30,000 mm/s² take speed printing to a new level.

Empowered by dual 18 mm metal gears and a 9.5:1 reduction ratio HGX extruder, Arco’s provides precise control over filament feeding.

Achieve faster, steadier extrusion and precise filament control, even with soft materials like TPU, thanks to our patented Direct Extrusion Path (DEP) system, dual 18 mm gears, and a 9.5 torque ratio HGX extruder.

Print with Different Materials

Taking advantage of its precise feeding control and DEP (Direct Extrusion Path) technology, the Arco's fast response speeds support various printing materials, including PLA, PETG, soft filament like TPU, and carbon fiber-reinforced composite filament like PET CF15.

Larger, Faster, More Colors

After a successful Kickstarter campaign with over 1400 backers, the Phrozen Arco is now available to pre-order on Phrozen’s official stores.

While our resin 3D printers are your go-to choice for ultra-detailed prints, the Arco FDM 3D printer will help you to go BIG!

Phrozen Arco revolutionizes FDM 3D printing with incredible printing speeds and unparalleled printing volume, setting a new standard for precision and efficiency. This breakthrough, powered by the open-source Klipper system, provides precise control and flexibility, allowing you to tailor your printing experience to perfection.

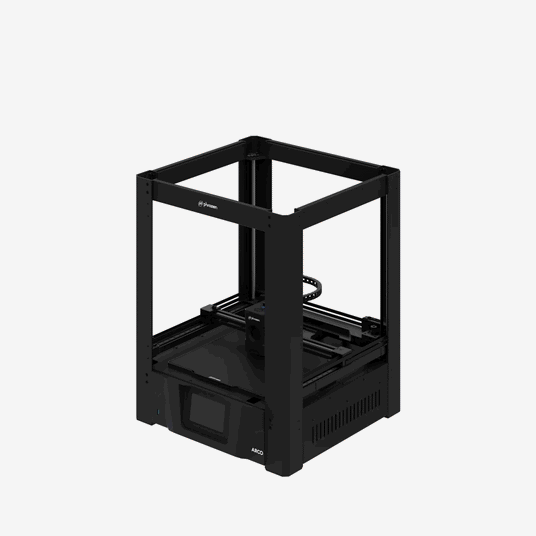

The Phrozen Arco is compatible with the Phrozen Chroma Kit multicolor system, PentaShield enclosure panels, and Phrozen High-Speed PLA for maximum printing experience and results.

Benefits
  • Large-Size Printing Capabilities: With printing volume of 300x300x300 mm³, feel free to expand your creations and print lifesize masks, crowns, and more, all in one piece.
  • 12 Times Faster Than Conventional Printers: Empowered by dual 18 mm gears and a 9.5 torque ratio HGX extruder, Arco easily delivers an impressive speed of 600 mm/s with a substantial acceleration of 30,000 mm/s².
  • Consistent Performance Across Materials: The Arco is enhanced with our patented Direct Extrusion Path (DEP) system, efficiently reducing the distance between gears and heat source and maintaining steady extrusion even for soft materials like TPU.
  • Minimal Wobbling for Top Quality Prints: In a mission to deliver the utmost speed optimization, Arco is designed with a low-gravity base, core XY structure, and 4 reinforced support pillars to improve the build for higher stability.
  • Enjoy Open Source Freedom: Experience the power of customization with Phrozen Arco's open-source system. Developed with Klipper firmware, it empowers Arco users to make modifications and gain total control over your 3D printing experience.
  • Embark on a Multicolor Printing Journey: Get the ChromaKit multicolor system as an extension for your Arco, and enjoy the ultimate colorful creations printing up to 4 colors in one model.

Specs
  • Printing Size: 300x300x300 mm
  • Extrusion System: Dual 18 mm extrusion wheels, advanced near-end extrusion, all-metal hotend
  • Printing Speed: 600 mm/s; 30,000 mm/s² acceleration
  • Maximum Hotend Flow Rate: 32mm³/s (at 28°C with Phrozen High-Speed PLA filament)
  • Heated Bed Temperature: Max 120°C
  • Nozzle Temperature: Max 300°C
  • Printing Power: 1500W@220V;450W@110V
  • Input Voltage: 110/220 V; 50/60 Hz
  • Slicing Software: PIXUP FDM Slicer
  • System Type: Klipper
  • Display Screen: 5.0 inches
  • Connection: Wi-Fi, PIXUP FDM Slicer
  • Storage: USB
  • Automatic Detection: PID calibration, auto-leveling, vibration detection
  • Machine Size: 491x475x620 mm
  • Machine Weight: 22 kg

*All specifications have been tested in a laboratory. Please note that certain specifications may be subject to change without prior notice.
