Product Overview

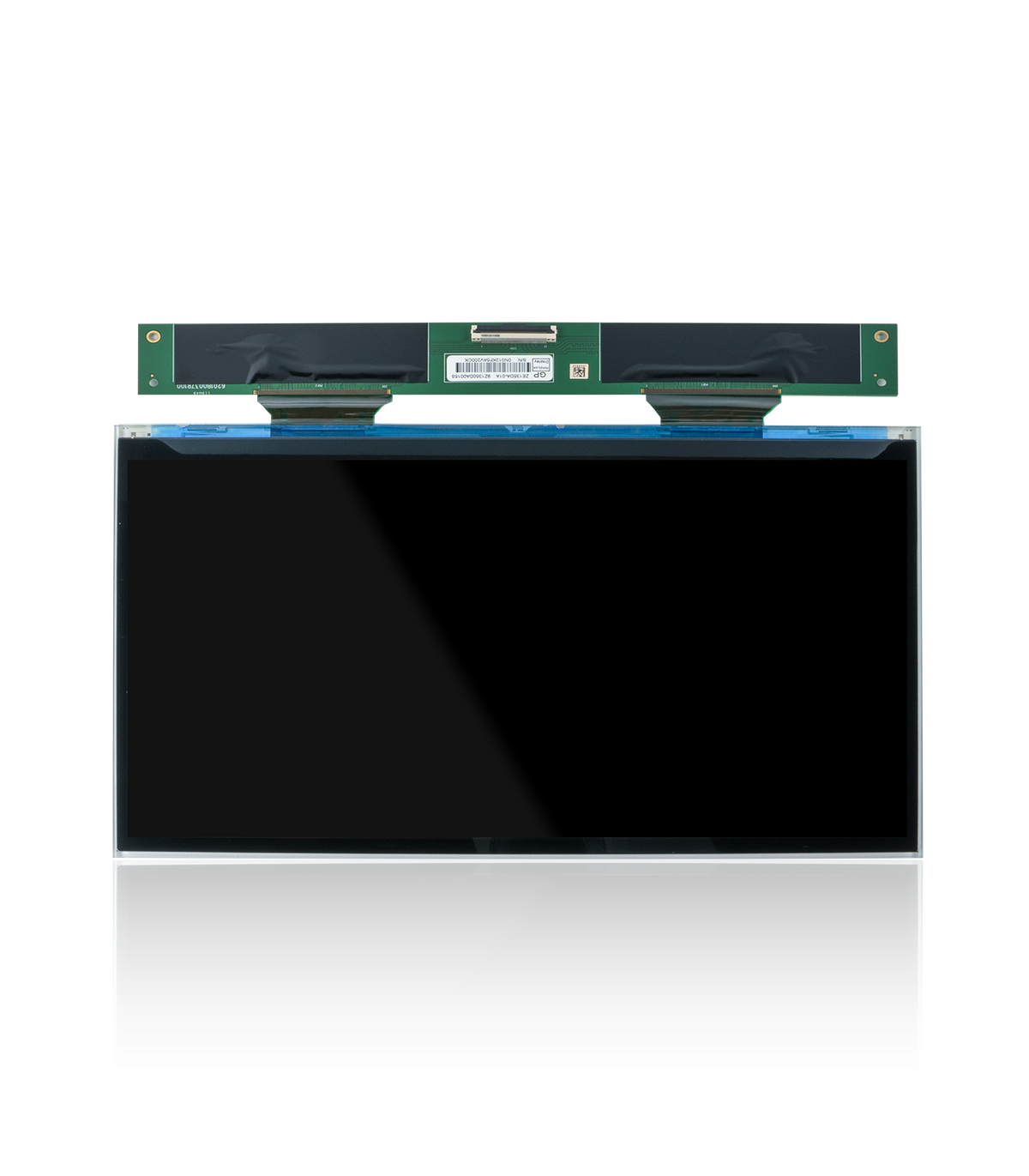

The Phrozen LCD Screen is the official replacement LCD for the Sonic Mighty Revo 16K MAX. It uses a 14-inch 16K Mono LCD with 15,104 × 6,230 resolution, 20 × 26 μm pixels, and an expected lifespan of 2,000 hours. This is a complete replacement kit with the LCD screen, tempered glass screen protector with a special coating, black LCD frame tape, LCD cable, and 2 pieces of acetate tape. Together with the printer’s LCD life tracking and quick-release design, it helps make planned maintenance more efficient and reduces downtime risk for studios, print farms, and professional users.

Product Introduction

The Phrozen LCD Screen is one of the core components of an LCD resin 3D printer. It controls how UV light is projected into the resin vat, curing the model layer by layer. To help maintain print quality and stability, Phrozen provides official replacement LCD screens for multiple Sonic Series 3D printers.

Phrozen official LCD screens use Mono LCD technology, which offers higher light transmission to improve printing efficiency and extend panel lifespan. With a heat-resistant design, the screen can maintain stable performance during long print sessions, helping each print stay accurate and consistent.

The LCD screen for Sonic Mighty Revo 16K MAX is a 14-inch 16K panel with 15,104 × 6,230 resolution, 20 × 26 μm pixel size, and an expected lifespan of 2,000 hours. It ships as a complete kit with the LCD screen, tempered glass screen protector with a special coating, black LCD frame tape, LCD cable, and 2 pieces of acetate tape, so the parts needed for replacement are included in one package.

If the LCD screen shows uneven brightness, black spots, print failures, or reduced performance after long-term use, replacing it with an official LCD screen can help restore the printer tooptimalprintingcondition.

• 14-inch 16K ultra-high resolution: Large 14-inch screen with 15,104 × 6,230 resolution and 20 × 26 μm pixels keeps details sharp across large batch layouts.
• Complete replacement kit: Includes the LCD screen, tempered glass screen protector with a special coating, black LCD frame tape, LCD cable, and 2 pieces of acetate tape, so the required replacement parts are included.
• Works with the printer’s LCD life tracking: Sonic Mighty Revo 16K MAX tracks accumulated LCD usage and shows a warning on the print page when the recommended replacement threshold is reached.
• Quick-release design: The Sonic Mighty Revo 16K MAX LCD quick-release design makes LCD removal and replacement more efficient, helping reduce downtime.
• Mono LCD high-transmission technology: Mono LCD technology allows more UV light to pass through than traditional RGB LCD, helping shorten exposure time.
• Stable heat-resistant design: The LCD screen is built to maintain stable performance during long print sessions and reduce heat-related aging.
• Official compatible design: Each LCD screen is made for its matching Phrozen Sonic printer model, ensuring the dimensions, connection, and optical performance match properly.
• Restores print quality: Replacing an aged or worn LCD can restore clear projection and accurate curing, helping maintain model detail and print success rate.
