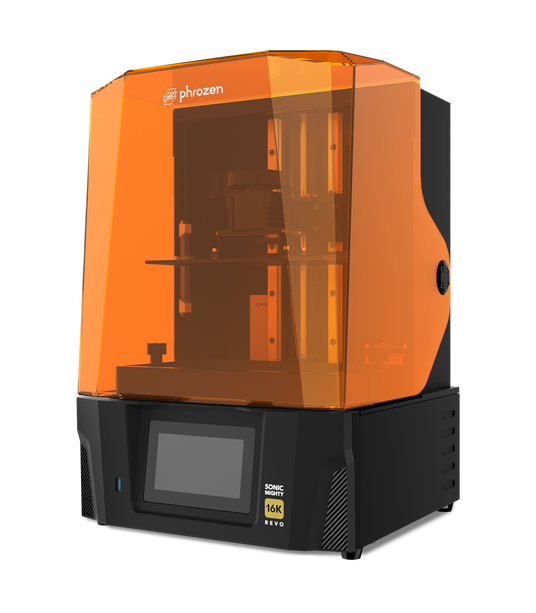

Phrozen Sonic Mighty 16K 10.1-inch LCD 3D Printer
Specifications
Specifications
-
LCD
-
Resolution
-
Light Source
-
Light intensity and light uniformity
-
Layer Thickness
-
Operating Screen
-
Connectivity
-
Software
-
Rail
-
Build Volume
-
Printer Size
-
Weight
Product Overview
Product Overview
The Classic Mighty Revo: Now in 16K
The Mighty series sets the standard for resin 3D printers, with an aerospace-grade aluminum frame, one of the largest build volumes in its class, and the kind of reliability that 50,000+ users count on—miniature studios, jewelry designers, and small-batch custom workshops. For years, Mighty has been the printer that studios trust to keep running.
Building on that track record, the Revo 16K adds 16K resolution (14 × 19 µm), a built-in 30°C chamber heater, dual smart failure detection, and the Phrozen GO App, each upgrade aimed at turning good prints into flawless ones.
Every Upgrade, Built for the Final Print.
What Makes the Mighty Series a Classic?
Real Stories from Our Users.
Vincent R. Nordone — All-In Convert
Sonic Mighty 8K
"I sold all my other printers and now have 3 of these. The print quality is bar none. I'm now running 3 of the Mighty 8K and I have not had a single print failure that wasn't due to my own support placement. After running my first Phrozen Mighty 8K for a few weeks I sold all my Anycubic machines and made the full switch."
psychoskin67 — Workhorse
Sonic Mighty 8K
"Excellent printer...for newbie or experienced. This printer, out of the box, has been nothing short of a powerhouse. I immediately ran the test print...and it came out nearly perfect. The details are outstanding, even when printing smaller parts. I use nothing but Phrozen 8K Aqua resins in this machine. As for slicers...I use both Lychee and Chitubox Pro depending on what tickles me at the moment, and neither have given me any issues whatsoever. I've even shut the machine down for weeks on end and it's never failed to print on restarting. 100% worth the money!"
Nathan Best — Etsy Seller
Sonic Mighty 8K
"I purchased two of these during Phrozen's pre-order/early bird sale and have been using them non-stop for the last 5 months in my Etsy store. I already had an Anycubic Photon Mono X for my 3D printing store and thought that I would buy one during the pre-order and sell the other one. After seeing how well they print, my Photon Mono X just collects dust. The level of detail that they're able to achieve is simply amazing. The Mighty 8K is quite a bit slower than my Photon Mono X, but it prints at close to double the resolution, so it's worth the wait."
Real Print Results
14 × 19 μm 16K high-resolution.
隨時跟上設計靈感，開會完就火速交件
- 300×300×300 mm 大體積列印空間
- 最大列印速度可達 1000 mm/s
- 加速度高達 40000 mm/s
- 最大流量 50 mm³/s
*搭配 CHT高流量噴嘴與普羅森高速PLA， 0.2 mm 層高
雨天上班，下班印好拖鞋直接穿回家
睡前丟檔案，一夜就把城堡蓋好
- 300×300×300 mm 大體積列印空間
- 最大列印速度可達 1000 mm/s
- 加速度高達 40000 mm/s
- 最大流量 50 mm³/s
*搭配 CHT高流量噴嘴與普羅森高速PLA， 0.2 mm 層高
超精細高品質列印 vs 時時回報智能系統
你選哪一個？
16K Resolution: Down to 0.02 mm Detail, Smooth Straight Off the Build Plate
From wing textures to facial expressions and armor engravings on 28 mm tabletop minis, details come out crisp so you spend less time post-processing.
A 10.1-inch 16K LCD (15120 × 6230) pairs big-build capability with pinpoint precision throughout a 211.68 × 118.37 × 235 mm build volume.
2,000+ Hours of LCD Panel Life: Built for Heavy Use
The upgraded LCD delivers higher light transmission, better heat resistance, and improved uniformity for more consistent results print after print. With an average lifespan of 2,000+ hours. That’s roughly 8+ months of printing at 8 hours a day.
Print Smooth, Sand Less
Layer lines are fine enough to be virtually invisible at arm’s length. Prints come off the build plate looking clean and smooth with minimal post-processing. Even under close inspection, you’ll hardly see any layer lines.
14K vs. 16K: Smaller Pixels, Sharper Prints
Pixel size is reduced by about 36% (16.8 × 24.8 µm → 14 × 19 µm), delivering finer detail, smoother surfaces, and sharper edges on small-scale models.
工作室列印輸出的好幫手，有狀況馬上跟你報告
Revo 16K內建加熱器、多點式感壓模組，全程幫你監測列印過程，發生異常會馬上通報。就像隨時挺你的超級助手，讓你放心專注在更重要的事情上。
Your Studio’s Guardian: Notifies You the Moment Something Goes Wrong
Built-in 30°C chamber heater plus a multipoint pressure-sensing sensor monitors the entire print so you can run prints with more confidence and catch issues early.
Aerospace-Grade Aluminum Frame: Built for Heavy Use with Rock-Solid Stability
Dual linear rails, a ball screw, and a rigid 6000-series aluminum frame work together to keep motion steady and layers consistent. Even on 12+ hour runs, the Z-axis stays exceptionally precise, so tall prints and heavier parts form cleanly layer by layer, with a reduced risk of layer shifting.
Steady Heater for More Reliable Prints
The built-in heater warms up to 30°C in about 30 minutes and holds a consistent temperature to help reduce print failures in colder spaces like garages or basements, especially during winter.
Circulating heat keeps temperature stable, helping every layer cure cleanly for flawless results.
A short warm-up ensures steady temperature throughout long print jobs
Maintain the printing chamber at 30°C to boost your print success rate
Smart Sensors, Stress-Free Prints
Assisted Leveling
Quickly resolves calibration errors so you can go from unboxing to your first print in as little as 10 minutes.
Foreign Object Detection (≥ 4 mm)
If the sensors detect an object ≥ 4 mm on the LCD, the printer automatically pauses to help protect the release film.
Part Detachment Alert (15 Layers)
If peel force reads zero for 15 consecutive layers, you will get an instant notification.*
*The sensors will detect objects ≥ 4mm.
**Notifications will be triggered once sensors detect the complete absence of peeling force for 15 continuous layers, after the building plate is no longer submerged in resin.
A Thoughtful Design: Every Detail Covered
The Revo 16K is thoughtfully designed to take care of the details that matter, with practical features like a flip-up lid that saves space, bright internal lighting, activated carbon air filtration, and built-in leak prevention to make resin printing easier, cleaner, and more convenient.
從創作到小批量產，通通搞定
專業設計創作
細節控必備！唯有 Revo 16K 能百分百呈現你的原始構想，所有細節都精準到位，滿足設計師最挑剔的眼光。
代客專業印製
接急單不再怕翻車。模型打樣、功能零件、特殊需求全部搞定。Revo 16K精度高、速度快、品質漂亮。交件快又準，讓客戶只想找你談生意。
小批量農場列印
Revo 16K 是你農場最可靠的主力機，長時間高效運作，品質一致不走樣。印得穩、交得快，讓你訂單接到手軟，做夢都會笑。
From Creative Projects to Small-Batch Production: All on One Machine
-
![]()
Is the Revo 16K worth it for display-quality miniatures and jewelry prototyping?
Yes, if you want crisp micro-detail with minimal post-processing. At 14 × 19 µm, wing textures, facial expressions, and engraved armor details on 28–32 mmfigures print sharp and well-defined. For jewelry prototyping, you’ll get crisp filigree and micro-prong details suited for investment casting workflows.
-
![]()
Can I run a reliable print service with the Revo 16K?
Yes.Dual failure detection keeps client prints safe from debris and detachment.Phrozen GO lets you monitor time-sensitive jobs remotely.Assistedleveling means less downtime between orders, and the built-in heater keeps quality consistent across day and night shifts.
-
![]()

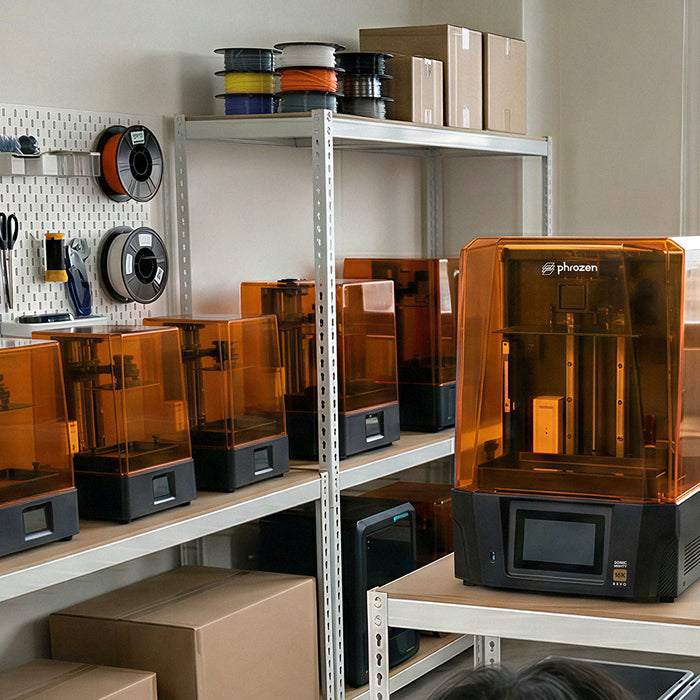

Is the Revo 16K a good fit for a studio?
Yes. Phrozen GO lets you monitor multiple machines from one dashboard. The 30°C heater helps keep prints consistent around the clock, and the aerospace-grade 6000-series aluminum frame helps maintain precision during overnight runs. The 211.68 ×118.37 mm build plate can fit 20–30 miniatures per batch, so you can scale output without sacrificing 16K detail
Product Specs
- Print Technology: MSLA
- Light Source ：405nm / COB + Fresnel Lens
- XY Resolution： 14 x 19 μm (16K)
- Print Speed ： Max 676 layers/hr (layer height 0.01-0.2 mm)
- Machine Size ：353 x 345 x 517 mm
- Build Volume ： 211.68 x 118.37 x 235 mm
- Machine Weight ：22.5 kg
Spec | Phrozen Sonic Mighty 16K Revo | Other 16K 3D Printers |
|---|---|---|
LCD Screen | 10.1" 16K Mono LCD | 10.1" 16K Mono LCD |
Resolution | 15120 x 6230 (16K) | 15120 x 6230 (16K) |
XY Pixel Size | 14 x 19um | 14 x 19um |
Build Volume | 211.68x118.37x235mm | 211.68x118.37x220mm |
Print Speed | Up to 676 layers/hr | Up to 150 mm/h |
Leveling | Auto-leveling | Auto-leveling |
Heating | Constant 30°C | Constant 30°C |
Multi-Printer Management | Phrozen GO App | ✓ |
Metal Frame | Aerospace-grade 6000 series aluminum | Partial metal |
Z-Axis Rail | Dual linear rails + ball screw | Dual linear rails + ball screw |
Net Weight | 18 kg | 16.1 kg |
Choose the Revo 16K if you:
- Need to print tall pieces (busts, helmets, large scenes) — the 235 mm Z-height gives you 15 mm more headroom than the Saturn 4 Ultra, so most single-piece prints clear without splitting the model
- Want long-term frame reliability — 6000-series aerospace aluminum with a clearly labeled alloy grade, backed by the Mighty platform and 50,000+ users across three years
- Run a multi-printer studio — Phrozen GO lets you track every machine’s status in real time from one app
- Already in the Phrozen ecosystem (resins, accessories, GO App) — seamless upgrade with full file compatibility
Frequently Asked Questions
How does the Sonic Mighty Revo 16K compare to the previous Sonic Mighty Revo 14K? Is it worth upgrading?
How does the Sonic Mighty Revo 16K compare to the previous Sonic Mighty Revo 14K? Is it worth upgrading?
Resolution increases from 14K (16.8 × 24.8 µm) to 16K (14 × 19 µm), delivering about 36% smaller pixel size and noticeably sharper detail. The built-in 30°C heater helps improve cold-weather print reliability. Build volume and file compatibility remain the same. It’s worth upgrading if you want finer miniature detail or more consistent prints in winter conditions.
I want to run an online shop selling my own model designs. Can the Mighty Revo 16K deliver commercial-grade print quality?
I want to run an online shop selling my own model designs. Can the Mighty Revo 16K deliver commercial-grade print quality?
Yes. At 14 × 19 µm, fine textures come through sharp and well-defined, producing commercial-grade prints with minimal post-processing. Pair it with the Phrozen GO app to monitor multiple printers remotely and keep orders moving.
Can I use the Sonic Mighty Revo 16K for jewelry casting?
Can I use the Sonic Mighty Revo 16K for jewelry casting?
Yes. At 14 × 19 µm, it captures fine filigree and micro-prong details with clean definition. Pair it with PhrozenAnyCast Castable Resinand take prints straight into your lost-wax casting workflow, reducing (or even eliminating) traditional hand-carving in many cases. Some jewelry studios report results comparable to higher-end machines
How many models fit on the Sonic Mighty Revo 16K build plate?
How many models fit on the Sonic Mighty Revo 16K build plate?
With a 211.68 × 118.37 ×235 mmbuild volume, you can typically fit 6–8 hero-scale figures (about 75 mm) or 20–3028 mmminis per batch, depending on orientation and supports. It also handles cosplay parts and other large single-piece prints
Does the built-in 30°C heater actually make a difference?
Does the built-in 30°C heater actually make a difference?
Yes, especially in colder spaces. When temperatures drop, resin thickens, which can reduce layer adhesion and lead to failed prints. The built-in 30°C heater helps maintain a stable print environment in garages, basements, and unheated workshops.
I'm new to resin printing — is the Revo 16K beginner-friendly?
I'm new to resin printing — is the Revo 16K beginner-friendly?
Yes.Assistedleveling comes factory-calibrated out of the box. Pour resin, tap Start, and you can go from unboxing to your first print in as little as 10 minutes. The enclosed build chamber helps reduce resin odor, so it works well for home use.
How long does the Sonic Mighty Revo 16K LCD last?
How long does the Sonic Mighty Revo 16K LCD last?
LCD lifespan is rated at 2,000+ hours. At 8 hours of daily printing, that's over 8 months of continuous use. The LCD is a consumable, and replacement screens are available from the Phrozen store. Replacement takes about a minute.
What resin works best with the Sonic Mighty Revo 16K?
What resin works best with the Sonic Mighty Revo 16K?
- Body / For the sharpest 16K detail: Phrozen Aqua Hyperfine
- Versatile printing: Phrozen Aqua-Gray 8K
- Jewelry casting: Phrozen AnyCast Castable Resin
- Table-top gaming miniature: Phrozen RPG Resin
- Compatibility: Works with most third-party 405 nm UV resins
What else do I need besides the printer to start printing?
What else do I need besides the printer to start printing?
Resin (choose based on your application) is the main extra you’ll need. For easier cleanup and proper post-curing, we recommend a Phrozen Wash & Cure Kit to help improve strength and long-term durability. An LCD screen protector is also recommended to reduce the risk of damage and help extend LCD life.
Picking up these accessories together can make setup smoother. If budget allows, consider adding a Phrozen Air Purifier Max and a ventilated enclosure to help reduce resin odor and keep your workspace fresh.
What are the spec differences between the Sonic Mighty Revo 16K and the Elegoo Saturn 4 Ultra 16K?
What are the spec differences between the Sonic Mighty Revo 16K and the Elegoo Saturn 4 Ultra 16K?
Both offer 16K resolution at 14 × 19 µm, but the Revo 16K adds 15 mm of extra Z-height (235 mm vs. 220 mm) and a 6000-series aluminum frame with a clearly specified alloy grade.
