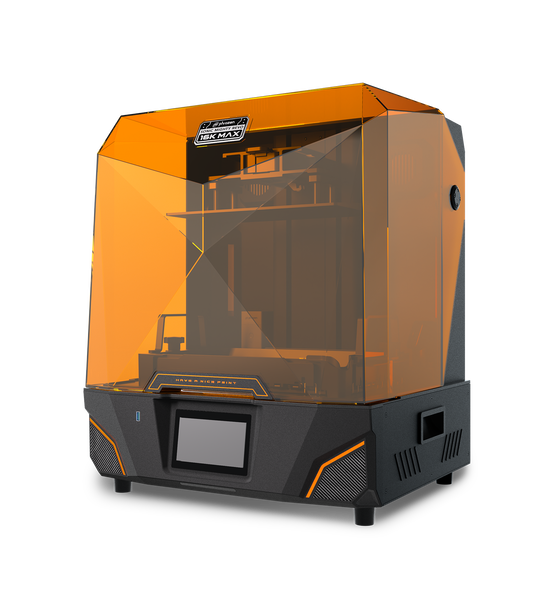

Revo MAX Dual Printer Bundle-Super Early Bird
Engineered for Every Print, Start to Finish
印得大，也印得細
14”大尺寸 × 16K高解析
30秒快速換膜
少拆少調，維護更輕鬆
2.5瓶樹脂一次加
跨夜不用補料，安心睡
腔體＆料槽雙加熱
低溫、高黏度樹脂都穩印
1080P高清攝影
AI校色、清晰監控無死角
防漏、防噴濺
減少漏液髒亂，清理更省事
14" 16K
Ultra-Fine Details at Full Scale
2000ml Vat
Fewer Refills, Longer Prints
Dual Heating
Chamber + Resin Vat Heating
Quick-Release Film
3 Minutes, No Tools Needed
360° Protection
No Leaks, No Mess, Easy Cleanup
Zero Blind Spots
1080p Camera, AI Color Correction
* Actual bottle count may vary by resin density. The 2.5-bottle estimate is based on Aqua Hyperfine Resin (Graphite Gray).
Revo MAX Print Showcase
See how Revo MAX balances size and detail on large-scale prints, through builds from fellow makers.
Big. Productive. Stable.
Print Bigger, Assemble Less
A 14" LCD paired with a 302.4 × 161.98 × 300 mm build volume fits more parts per print, so large models need less splitting. Fewer print runs, fewer pieces to match, and less assembly work, giving creators, studios, and print service providers a faster path to finished pieces.
16K High Definition,
Print Big Without Losing Detail
The Revo MAX's 16K resolution captures ultra-fine detail, with anti-aliasing smoothing curves and edges, and supports single print files up to 10GB for large-scale projects. From textures to figurines and jewelry engravings, results stay sharp for miniature sculptors and jewelry designers.
*Model: Izat’al, Dragon Empress｜ Designed by Loot Studios｜Painted by Yong Cheng
Steadier Temperature, Steadier Prints
Cold rooms and high-viscosity resins need steady temperature control. Revo MAX combines dual-heat chamber with an optional heated resin vat to regulate temperature, while smart detection catches drops for reliable prints.
Standard: Dual-Fan Chamber Heater
Fast Heating to 30°C
The dual-fan chamber heater quickly brings the chamber to 30°C, helping users in cold-climate regions keep resin stable from the start of every print.
Add-On: Heated Resin Vat
High-Viscosity Resins, Stable Prints
The optional heated resin vat stabilizes resin flow, helping professionals print high-viscosity engineering resins with more consistent results.
Add to cart nowBuild Plate Handling, Simplified.
An all-metal build plate, upgraded for easier removal, drainage, and cleanup, for simpler and smoother handling.
Removal - Snap-Lock and Large Handles
The snap-lock latch means no unscrewing when removing or reinstalling the build plate. Large handles on both sides keep the plate steady and secure in hand.
Drainage - Hang and Drain
The build plate hangs directly inside the machine to drain. Resin drips back into the vat, while the lid can still close normally.
Cleanup - Sloped Design, Faster Cleanup
The sloped surface helps resin flow back during printing, leaving less resin on top of the build plate afterward. The build plate also fits directly into the Mega Wash S for fast, automated cleaning.
From Removal to Draining to Cleanup, Every Step Feels Smoother
Revo MAX's build platform gets a full upgrade, now easier to grip, cleaner draining, and faster cleanup.
Snap-Lock Release + Dual Handles, Secure and Easy to Grip
Snap-lock, quick-release design means no more fumbling with screws. Large handles on both sides keep even big platforms steady and secure, with no slipping.
Hanging Drip Rack, Hangs Securely in Place
The build platform hangs directly inside the machine to drain, no hand-holding needed. Resin drips back into the vat, and the lid still closes normally.
Sloped Design, Less Buildup,
Faster Cleanup
The sloped surface lets leftover resin drain off on its own, cutting down on wipe-downs. It's also compatible with the Mega Wash S for machine washing.
不在機台旁，也能掌握所有列印狀況
搭配 Phrozen GO App，你可以遠端選檔、控制列印、查看即時畫面，印完還能直接回看或分享縮時影片。異常通知、耗材提醒與多機管理也都整合在手機裡，長時間列印或跨夜任務，不用來回跑機台，也不怕錯過任何異常。
開始／暫停／續印控制
多機台同時管理
即時監看／縮時影片
加熱/ 照明開關遠端控制
異常狀況即時提醒
Print Longer, Swap Faster
What slows your workflow down usually isn't print time; it's the constant refills and material swaps.
Revo MAX solves both with a bigger resin vat and quick-release film.
2L Vat, Fewer Refills
The 2L resin vat holds approximately 2.5 bottles in a single fill, so long or overnight prints need less refilling. No resin-feeder, no extra pumps or tubing, just a simpler setup.
Quick-Release Film, 3-Minute Swap
Traditional film swaps can take up to 30 minutes, aligning holes and screwing them in. Revo MAX's quick-release design on all four sides gets it done in 3 minutes instead. Less maintenance, more printing.
* Actual bottle count may vary by resin density. The 2.5-bottle estimate is based on Aqua Hyperfine Resin (Graphite Gray).
** Use Phrozen’s original pre-cut Quick-Swap Release Film for proper fit and tension.
一次加滿約 2.5 瓶，跨夜不用靠自動注料
2L 大容量樹脂槽，一次可加入約 2.5 瓶樹脂，長時間或跨夜列印不用一直補料。不用自動注料，也少了額外泵浦與管線，整體設計更簡單、操作更省事。
多買一組快拆膜樹脂槽→
不怕臨時斷電，不用整批重印
遇到異常斷電主動通知，來電後馬上繼續印，不用整批報廢重印。支援全球電壓，換地區使用免切換。
*註: 續印後若有留下層痕，可使用砂紙修復。
LCD 不怕刮，特殊塗層好清潔
Revo MAX 標配 LCD 鋼化保護層，不用擔心意外刮傷，樹脂沾到也不怕，特殊塗層一擦就乾淨。好清潔、好維護，讓 LCD 用得更久。
LCD 快拆設計，迅速換好
LCD 更換不再需要大拆機。Revo MAX 採用快拆設計，可迅速完成拆裝，換更快、停機更短，維護不麻煩。
Fewer Surprises, More Uptime
From hardware safeguards to system alerts, Revo MAX catches common print risks at every layer.
Triple Hardware Protection
A Z-axis guard, tempered glass LCD cover, and raised base help block resin spills and seepage into the machine.
Power-Loss Recovery
If there is a sudden power loss, you will get an alert. Once power returns, printing resumes from where it left off, reducing the risk of reprinting.
*Note: Minor layer lines left after a print resumes can be smoothed out with light sanding.
Real-Time Alerts
Get alerts for print failures and temperature drops, with tracking for Z-axis maintenance, LCD, and release film lifetime, keeping you informed.
不在機台旁，也能掌握所有列印狀況
搭配 Phrozen GO App，你可以遠端選檔、控制列印、查看即時畫面，印完還能直接回看或分享縮時影片。異常通知、耗材提醒與多機管理也都整合在手機裡，長時間列印或跨夜任務，不用來回跑機台，也不怕錯過任何異常。
開始／暫停／續印控制
多機台同時管理
即時監看／縮時影片
加熱/ 照明開關遠端控制
異常狀況即時提醒
No More Second-Guessing on Settings
Leveling, guided setup, and exposure testing are all built into the screen, so even first-time users can get it right the first time.
Pressure-Sensing Leveling
Pressure and color indicators mark all four corners, making precise adjustments simple.
Step-by-Step Guide
On-screen guidance covers the setup process, backed by QR video tutorials, no experience needed.
Zonal Exposure Test
Test multiple exposure settings at once and compare results side by side for faster resin dial-in.
The screen shows pressure readings and color indicators for all four zones, just follow the on-screen guidance to adjust each corner. No experience needed, leveling is easy to get right.
Step-by-step on-screen guidance paired with QR code video tutorials covers everything from basic setup to material swaps, so even first-time users can follow along smoothly.
Run multiple exposure settings in a single test and compare the results side by side, no more repeated test prints, just a faster way to land on the right resin settings.
Clear, Accurate Monitoring, Every Time
Clear, Accurate Monitoring, Every Time
1080p Vertical Camera, No Blind Spots
Horizontal, low-quality cameras blur the view, leaving blind spots hiding failures. Revo MAX's 1080p vertical camera keeps detail sharp, letting you check long or overnight prints from anywhere without walking to the printer.
AI Color Correction with Zero-UV LED
Snapshots and time-lapse footage can look dim and color shifted. Zero-UV LEDs light the chamber evenly without affecting curing, and AI color correction fixes color shift so footage matches the model's true color.
1080P 高清攝影，細節不漏看
直立式攝影，列印全程無死角
AI 自動校色，少色偏更精準
零紫外光LED，更亮又不干擾固化
1080P 高清攝影，細節不漏看
1080P 高清攝影，細節不漏看
直立式攝影，列印全程無死角
天天印大件的人，才懂這些小細節有多重要
挑選大尺寸機台不能只看列印規格，Revo MAX 從上蓋、載台、防護到操作介面設計，所有能讓大件列印更方便的細節都顧到，幫你減少意外、降低保養負擔，長時間操作舒服又輕鬆。
多重防護，少意外好清理
Z 軸防護罩阻擋樹脂噴濺，不卡料
防漏液底座全面封住，樹脂不進機台
失敗 + 異物偵測，異常主動提醒
Z 軸、LCD 保養自動提醒不怕忘
上蓋設計舒適又省心
上蓋有氣密阻尼，鎖住樹脂異味不外露
抗靜電設計，樹脂少噴濺乾淨不髒亂
保溫、防塵、降噪，一蓋搞定
好開不夾手，開到哪停到哪，不掉蓋
操作體驗更直覺
四區壓力偵測：校正不再只靠手感
720P螢幕晶片升級，畫面流暢不卡頓
四色進度狀態燈，遠遠看就知道機況
步驟教學 + 掃碼影片，新手快速上手
Stay in Control Even on the Go
The Phrozen GO App lets you control prints and check the live camera from your phone. You can also review or share time-lapse videos after printing. Error notifications, material reminders, and multi-machine management are all handled from the same app.
開始／暫停／續印控制
多機台同時管理
即時監看／縮時影片
加熱/ 照明開關遠端控制
異常狀況即時提醒
Complete Your Setup with Essential Accessories at a Better Value
Save $381
Wash & Cure Mega
Bundle Includes:
- Wash Mega S x1
- Cure Mega S x1
- Alcohol Bag x1
- Free Mixing Station (Worth $170)
$499
$880
Save $171
Workspace Upgrade
Bundle Includes:
- Ari Purifier MAX x1
- HEPA Composite Filter x1
- Free Activated Carbon Filter (Worth $70)
$299
$470
Save $169
Daily Maintenance
Bundle Includes:
- PFA (nFEP) Film x1
- LCD Screen x1
- Frame Tape x1
- Free LCD Protector (Worth $30)
$299
$468
Tech Specs
- Printing Technology : MSLA (LCD)
- LCD : Mono LCD 14"
- XY Resolution : 20*26 μm (16K)
- Light Source : 405nm ParaLED® Matrix 3.0
- Release Film : nFEP Film
- Layer Thickness : 0.01-0.2 mm
- Operating Screen : 5"
- Connectivity : USB, Wi-Fi, Ethernet
- Build Volume : 302.4 × 161.98 × 300 mm
- Printer Size : 520 x 450 x 627 mm
- Printer Weight : 29 kg
Which One Fits Your Workflow?
Mighty Revo 16K · Mighty Revo MAX · Mega 8K S — Spec Comparison
| Spec | Mighty Revo 16K | Mighty Revo MAX | Mega 8K S |
|---|---|---|---|
| Technical Specs | |||
| LCD | 10.1" 16K | 14" 16K | 15" 8K |
| Light Source | 405nm / COB + Fresnel Lens | 405nm ParaLED® Matrix 3 0 | 405nm ParaLED® Matrix 3 0 |
| XY Resolution | 14 × 19 μm | 20 × 26 μm | 43 μm |
| Build Volume (mm) | 211.68 × 118.37 × 235 | 302.4 × 161.98 × 300 | 330 × 185 × 300 |
| Release Film | nFEP (PFA) | nFEP (PFA) *quick-release | ACF Film |
| Heating System | Chamber single-fan heating | ★Chamber + Vat (Add-on Required) | ✕ |
| Heating Temperature | 30°C | 30°C | ✕ |
| Hardware Specs | Camera | 720P | ★1080P Vertical Camera + AI Color Calibration | ✕ |
| Resin Vat Capacity | 0.67L | ★2L (≈2.5 bottles) | —*No MAX line marked, cannot be standardized measured (less than 2L) |
| Quick-Release Build Plate | ✕ | ✓ | ✕ |
| Quick-Release Film | ✕ | ✓ | ✕ |
| Quick-Release LCD | ✓ | ✓ | ✕ |
| AA (Anti-Aliasing) | ✕ | ✓ | ✓ |
| Power-Loss Resume | ✕ | ✓ | ✕ |
| Operating Screen | 5" | 5" (720p) | 3.5" |
| Connectivity | USB, Wi-Fi, Ethernet | USB, WIFI, Ethernet | USB, Wi-Fi |
| Rail | Dual Rails (Ball Screw) | Dual Rails (Lead Screw) | Dual Rails (Ball Screw) |
| Machine Dimensions (mm) | 353 × 345 × 517 | 520 × 450 × 627 | 472 × 380 × 566 |
| Weight | 18.2 kg | 29 kg | 26 kg |
*quick-release
(≈2.5 bottles)
*No MAX line, <2L, not standardized
Looking for More Deals?
Discover Our September Exclusive Offers
Frequently Asked Questions
Revo MAX Launch & Purchase FAQs
What is the Revo MAX launch promotion schedule, and can I still use my email sign-up discount code?
What is the Revo MAX launch promotion schedule, and can I still use my email sign-up discount code?
The Revo MAX launch promotion begins with Super Early Bird on Sept. 22, with discounts starting from 18% off. Early Bird runs from Oct. 13 to Oct. 20, 2026,from 15% off. The pre-launch email sign-up campaign has ended, but customers who subscribed before launch and received a discount code can still apply it at checkout for their final promotional price.
Does the price on the U.S. site include shipping and taxes?
Does the price on the U.S. site include shipping and taxes?
Shipping, customs duties, import taxes, and other applicable fees are not included in the displayed product price. These fees may be charged separately depending on your destination and are the customer’s responsibility. For more details, please refer to our [Shipping Policy].
What is the estimated shipping lead time for Revo MAX printers and related accessories?
What is the estimated shipping lead time for Revo MAX printers and related accessories?
Revo MAX printers and related accessories are expected to ship by the end of December. Actual timing may vary depending on shipping and logistics conditions.
Product Design | Why We Built Revo MAX This Way
What is the difference between Revo MAX and Revo 16K?
What is the difference between Revo MAX and Revo 16K?
Revo MAX is built for larger prints and higher output. It has a 14" 16K LCD, a 2L resin vat, chamber heating, and optional heated resin vat support for longer, steadier print sessions.
Why doesn’t Revo MAX have an automatic resin refill system?
Why doesn’t Revo MAX have an automatic resin refill system?
Revo MAX uses a 2L resin vat to reduce refilling without extra pumps or tubing. This keeps the setup simpler and helps avoid refill-system issues such as leaks, clogs, or loose hoses.
How does Revo MAX help with cold rooms or high-viscosity resins?
How does Revo MAX help with cold rooms or high-viscosity resins?
Revo MAX uses dual-fan chamber heating to help keep resin temperature stable. For thicker resins, the optional heated resin vat helps resin flow more smoothly during printing.
Can Revo MAX resume printing after a sudden power loss?
Can Revo MAX resume printing after a sudden power loss?
Yes. When power returns, Revo MAX can resume printing from where it stopped. Minor layer lines may appear after print recovery and can be sanded during post-processing.
When should I use chamber heating or the heated resin vat?
When should I use chamber heating or the heated resin vat?
Use chamber heating when room temperature is low. Use the optional heated resin vat for high-viscosity resins that need better flow. The heated resin vat supports resin viscosity up to 4000 cps.
Does the heated resin vat affect LCD lifespan?
Does the heated resin vat affect LCD lifespan?
The heated resin vat uses controlled heating to help maintain resin flow. It keeps the average temperature at 30°C or below, helping avoid excessive heat exposure near the LCD.
Maintenance & Support | Will It Be Troublesome Over Time?
Is it hard to replace the LCD?
Is it hard to replace the LCD?
No. Revo MAX uses a quick-release LCD design, so you do not need to take the printer apart. The printer also tracks LCD life and reminds you when it needs replacing.
Which release film should I use with each Revo MAX resin vat?
Which release film should I use with each Revo MAX resin vat?
Revo MAX has two vats. The standard quick-swap vat uses Phrozen PFA (nFEP) Quick-Swap Release Film with pre-cut holes and a silicone sheet. The optional heated vat uses Phrozen’s matching standard release film.
Are replacement parts easy to find and replace?
Are replacement parts easy to find and replace?
Key parts such as PFA film, LCDs, and resin vats are available through Phrozen and authorized resellers. Quick-release designs and lifetime tracking make maintenance easier.
Revo MAX Dual Printer Bundle-Super Early Bird
Printing Volume
Printing Speed
XY Resolution
Layer Thickness
Light Source
Lcd Specification
Operation
Slicer Software
Compatible File Format
Connectivity
Printer Size
Printer Weight
Power Reruirement
System Power
Rail
Screw
Release Film
