Einstar 3D Scanner

$941.59 $1,069.99
Shipping calculated at checkout.
Shipping & Tariff
Return & Warranty

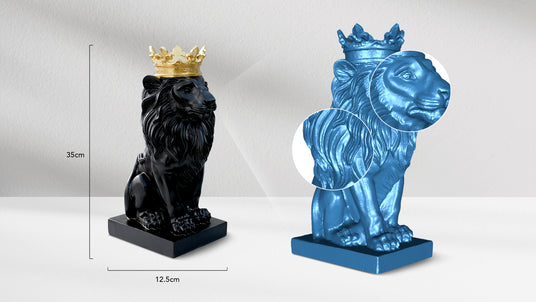

High-Resolution Output

Achieve sharper textures and clearer details with high-density point distances up to 0.1 mm for accurate, true-scan restoration.

Reliable Scanning in Minutes

Experience enhanced speed scan of up to 14 fps with automatic alignment and intelligent tracking, completing full-body scanning within minutes.

Versatile Enhanced Data Capture

Equipped with advanced camera systems, EINSTAR constantly delivers stable and precise results across environments, even for challenging objects like human hair.

A Completely Streamlined Experience

Optimized for user efficiency, the EINSTAR 3D Scanner is simple to set up and use. Compatible with various output formats and 3D modeling software, it makes post-editing and printing more convenient.*

*For recommended configuration, please check the product specification table below.

As a prosumer scanner, the EINSTAR Portable 3D Scanner accommodates more experienced users looking for higher-quality 3D model output to streamline their process. Suitable for small to medium-sized enterprises, the EINSTAR Prosumer 3D Scanner is best paired with Phrozen Sonic Mighty Revo and Phrozen Sonic Mega 8K S 3D printers for superior print production efficiency.

Product Specification

Light Source Infrared VCSEL structured light*
Point Distance 0.1 mm - 3 mm
Effective Working Distance 160 mm - 1400 mm
Optimal Working Distance 400 mm
FOV (under optimal work distance) Distance 434 mm x 379 mm
Scan Rate Up to 14fps
Data Alignment Mode Texture/ Feature/ Hybrid Alignment/ Global Markers*
Full Color Scanning Yes
Outdoor Scanning Yes
Output Formats OBJ, STL, PLY, ASC, 3MF, P3
Scanner Weight 0.5 kg
Scanner Dimensions 220 mm x 46 mm x 55 mm
Carrying Case Dimensions 245 mm x 245 mm x 90 mm
Interface USB 2.0 or above
Supported OS Windows 10/11 64-bit

Note:
* EINSTAR infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.
* Global Markers alignment is only available in Object Scan Mode.
* EINSTAR must require computer equipped with NVIDIA graphics card.
